. Effective and stable performance with original import inverter compressor.
. HC Refrigerant, Freon-free.
. LED lamp.
. Chamber in painted steel, good appearance, durable, corrosion-proof.
. Storage spaces in different size, height-adjustable shelf.
. USB data export, up to 100,000 pieces of data can be stored.
. Mic-processor controlling, non-volatile operation, memory-maintained and real-time display of compressor operation.
. Smart cycle defrosting prevents temperature fluctuation from defrosting.

Parameter
External Dimensions (WxD x H)	900×668×1950 mm
Internal Dimensions (Wx D xH)	820×532×1375 mm
Volume	536L
Net weight	155kg
Performance
Temperature Setting Range	2~8℃
Ambient Temperature	5~35℃

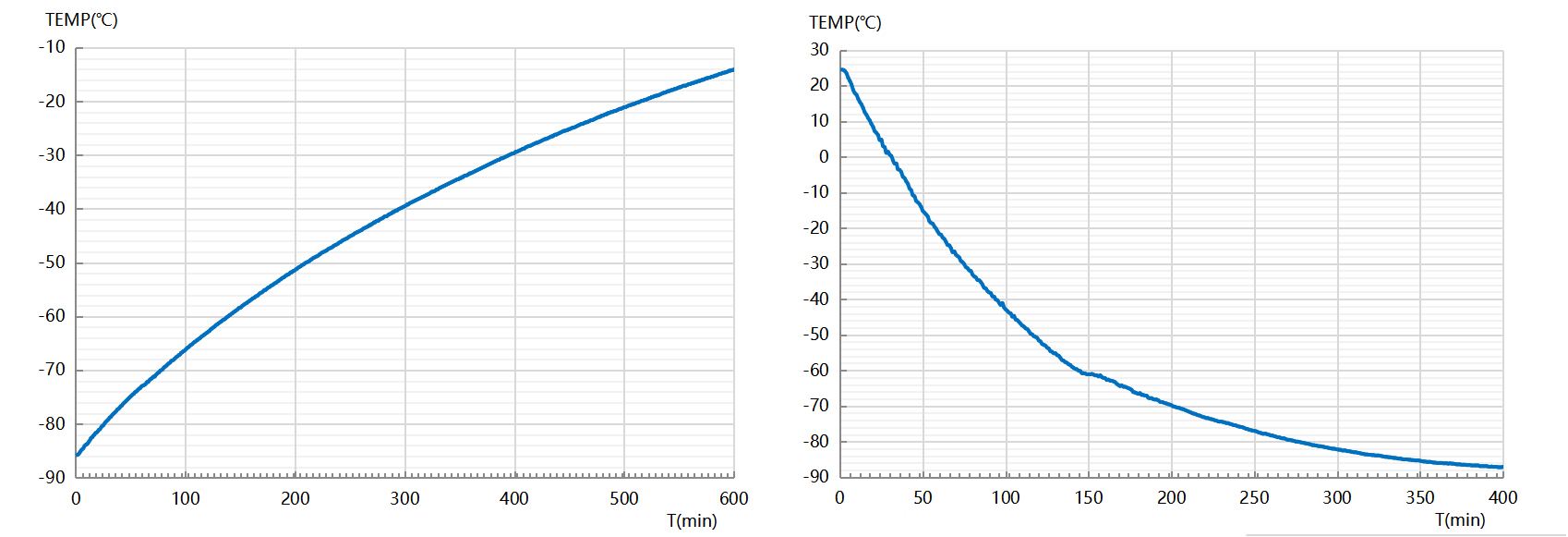

Cyclic curve
Noise Level (db)	49.1
Refrigeration
Refrigeration System	HC variable frequency
Forced circulation	Forced circulation
Evaporator	Finned tube
Compressors	Embraco VESA7U（112~278W）Invertor Type
Refrigerant	HC - R290
Insulation Material	PUF
Insulation Thickness	41-45mm
Defrost	Automatic ( Cycle Defrost )
Construction
Exterior Material	Painted Steel
Interior Material
Outer Doors/Lid	2× glass doors with heat reflective film
Outer Door Lock	1× mechanical lock
Shelves	Automatic ( Cycle Defrost )
Shelves deminsion	W370×D497 mm
Max. Load - Per Shelf	30kg
Access Port	1
Access Port Position	Left
Access Port Diameter	32mm
Casters	4 with 2 lockabel and levelling feet
Illumination	LED ,  25W×1 - Auto On / off Door opening basis
Controller
Controller	Microprocessor with Non Volatile memory
Display	Digital
Adjustment accuracy	0.1℃
Temperature Sensor	NTC thermistor sensors.
USB Port	Available to donwload temp data.
Digital Data memory （Optional）	3 months with 10 mts temp interval , 100,000 temp Data , CSV export file.
Remote Alarm Contact	24V, 2A
Battery Back up	Lithium , 72 hours back up
Alarm(V=VisualAlarm,B=Buzzer Alarm,R= Remote Alarm）
Cabinet temperature alarm	V-B-R
Door open alarm	V-B-R
Sensor alarm	V-B-R
Power failure alarm	V-B-R
Remote alarm output	B-R
Electrical
Power Supply(V)	220~240V
Frequency(Hz)	50/60
Rated input power	167.5W
Power consumption(KWh/24h)	2.52kW·h/24h
Communication systems
Standard port	USB, Temp Data Download CSV File
Optional port	RS485 For BMS Interface
RS485 For BMS Interface	Dry contact 24V, 2 A for BMS remote alarm connectivity
Standard Accessories
Accessories	Key×1
Options
Temp Chart recorder	——
Extra Shelves	——
Quality Management System
Certification	CE, ISO13485, ISO9001, ISO14001
